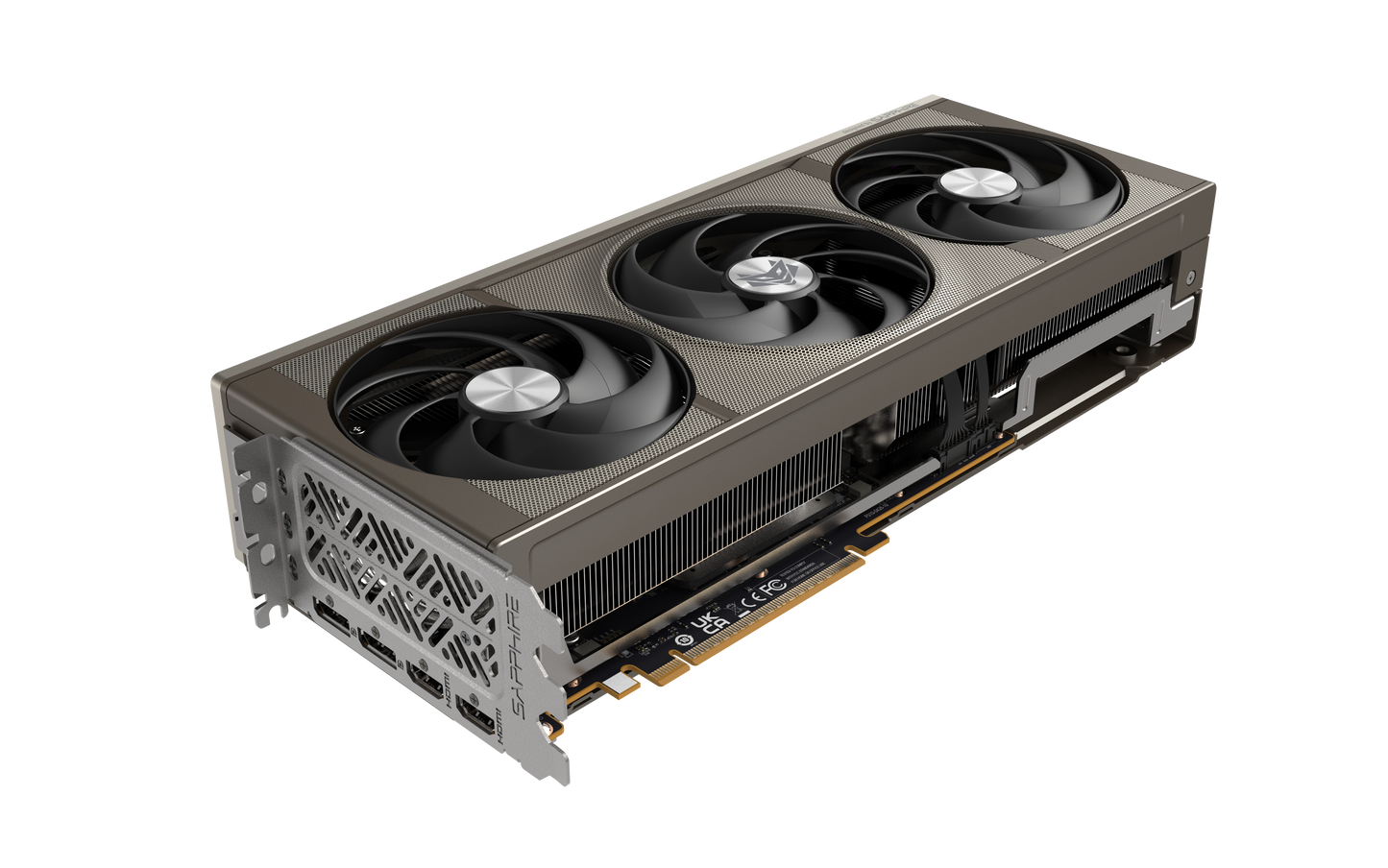

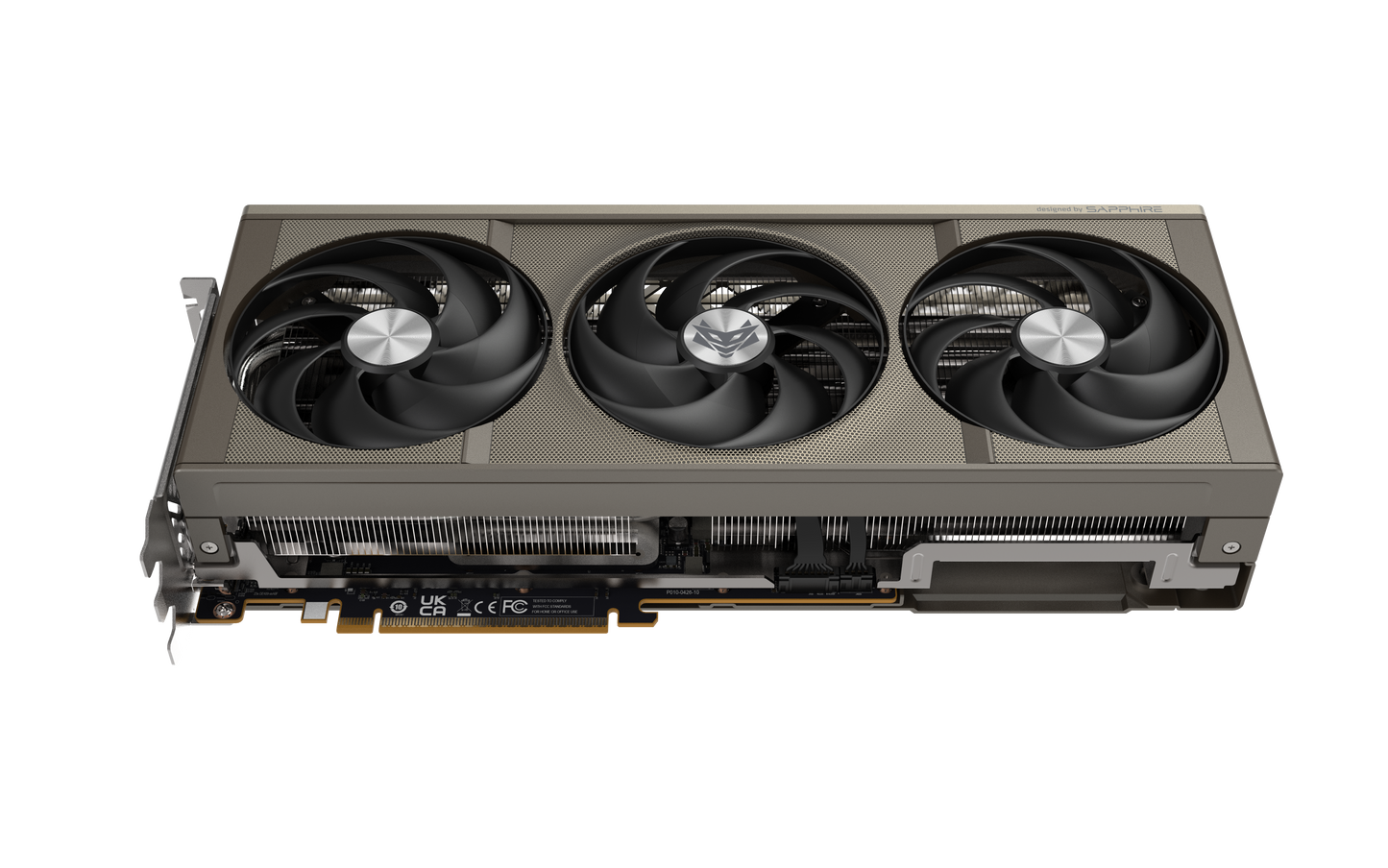

Sapphire AMD Radeon™ RX 9070 XT GAMING OC 16 GB

AMD Radeon™ RX 9070 XT Graphics Card
SPECIFICATIONS

Marketing Name
AMD Radeon™ RX 9070 XT Graphics Card

Model Name
RX 9070 XT

GPU Engine Specs

• Graphics Processing Unit: AMD RDNA™ 4 Architecture
• Interface: PCI-Express 5.0 x16
• Stream Processors: 4096
• Compute Units: 64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
• Infinity Cache: 64MB
• Ray Accelerators: 64
• AI Accelerators: 128
• DirectX Version Support: Microsoft® DirectX® 12 Ultimate
• OpenGL Version Support: Not specified
• Maximum Displays Supported: 4
• G-SYNC® Technology: Not applicable (supports AMD FreeSync™)
• Digital Maximum Resolution: 7680×4320 (HDMI® & DisplayPort™ 2.1a)

Core Clock Speeds

• Boost Clock: Up to 3060 MHz
• Game Clock: Up to 2520 MHz

Memory Specs

• Memory Size: 16GB
• Memory Speed: 20 Gbps Effective
• Memory Bus: 256-bit GDDR6

Display Outputs

• DisplayPort: 2x DisplayPort™ 2.1a
• HDMI™: 2x HDMI®
• HDCP Support: Not specified

Power & Dimensions

• Power Consumption: 330W Typical Board Power
• Power Connector: 12V-2x6(H++) (3x8-pin adapter included)
• Recommended PSU: Minimum 750W
• Dimensions: 330.8 (L) x 128.5 (W) x 65.68 (H) mm
• Weight (Card / Package): Not specified

Connections

• DisplayPort
• HDMI™

Cooling & Build Features
Tri-X Cooling Technology with AeroCurve Fan Blade, Free Flow, and Optimized Composite Heatpipes ensures thermal efficiency. Includes Integrated Cooling Module, High TG Copper PCB, Two-Ball Bearing Fans, Metal Backplate, and Honeywell PTM7950 TIM. Built with a Cold Rolled Steel Frame and equipped with FrameDefense. Features Quick Connect MagniPlate and Fan Quick Connect for easier maintenance.

Software
Supported by TriXX Software, offering features like Performance vs. Efficiency Quicksets, Glow!, Fan Check, TriXX Boost, and External RGB LED MB Synchronization. Also compatible with AMD Software: Adrenalin Edition™ for enhanced performance tuning and AMD Smart Technologies including AMD HYPR-RX with AFMF 2, AMD FidelityFX™ Super Resolution 4, AMD Noise Suppression, and AMD Fluid Motion Frames 2.
