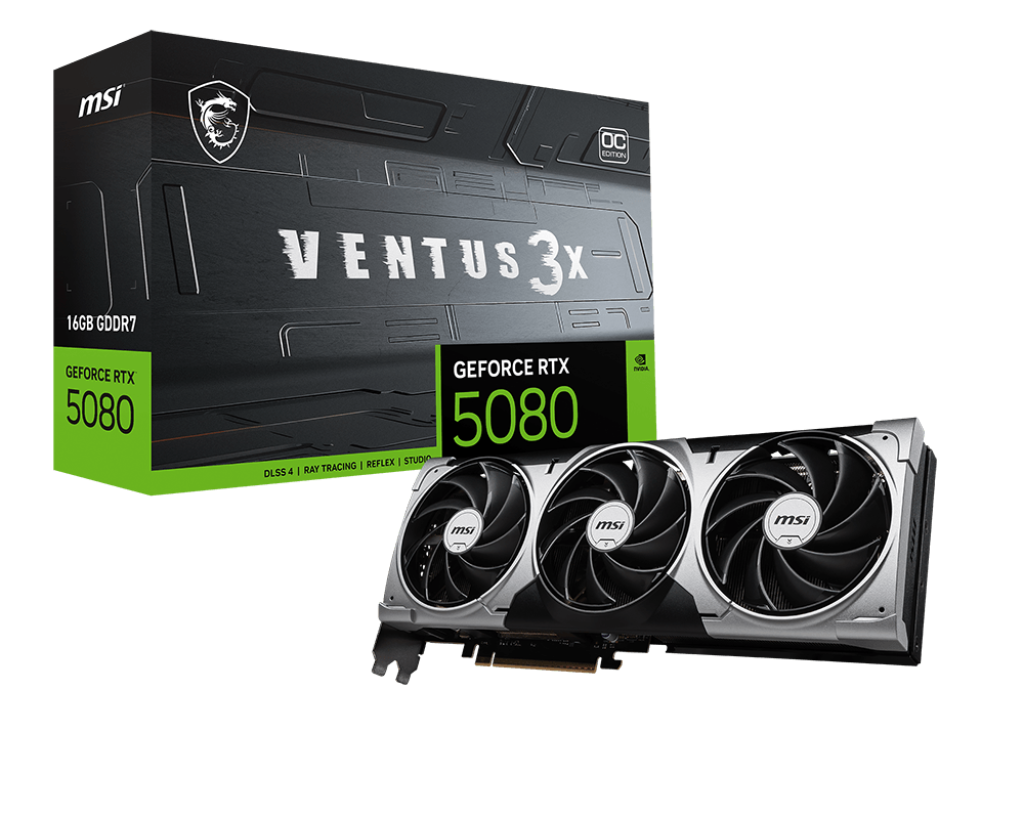

MSI GeForce RTX™ 5080 16G VENTUS 3X OC

GeForce RTX™ 5080 16G VENTUS 3X OC — Specifications

Marketing Name
GeForce RTX™ 5080 16G VENTUS 3X OC

Model Name
G5080-16V3C

GPU Engine Specs

• Graphics Processing Unit: NVIDIA® GeForce RTX™ 5080
• Interface: PCI Express® Gen 5
• CUDA® Cores: 10,752 Units
• DirectX Version Support: 12 Ultimate
• OpenGL Version Support: 4.6
• Maximum Displays Supported: 4
• G-SYNC® Technology: Yes
• Digital Maximum Resolution: 7680 x 4320

Core Clock Speeds

• Extreme Performance: 2655 MHz (via MSI Center)
• Boost Clock: 2640 MHz

Memory Specs

• Memory Size: 16GB GDDR7
• Memory Speed: 30 Gbps
• Memory Bus: 256-bit

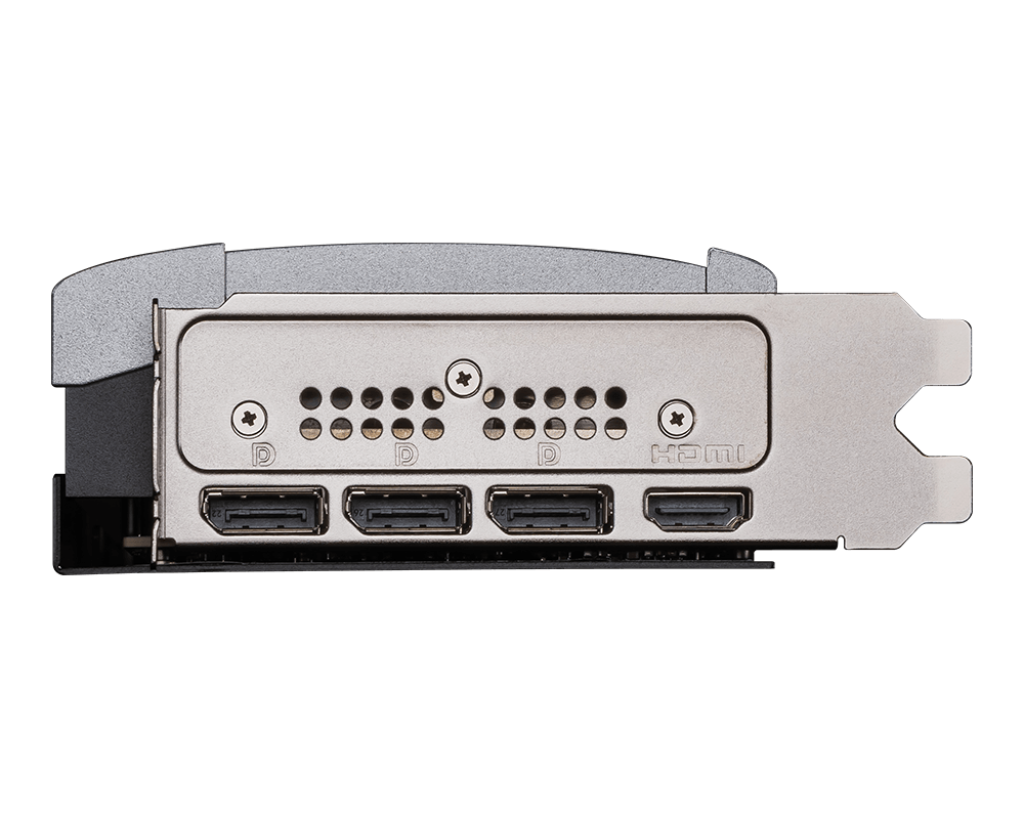

Display Outputs

• DisplayPort: 3 x DisplayPort v2.1b
• HDMI™: 1 x HDMI™ 2.1b
(Supports up to 4K @ 480Hz or 8K @ 120Hz with DSC, Gaming VRR, HDR)
• HDCP Support: Yes

Power & Dimensions

• Power Consumption: 360W

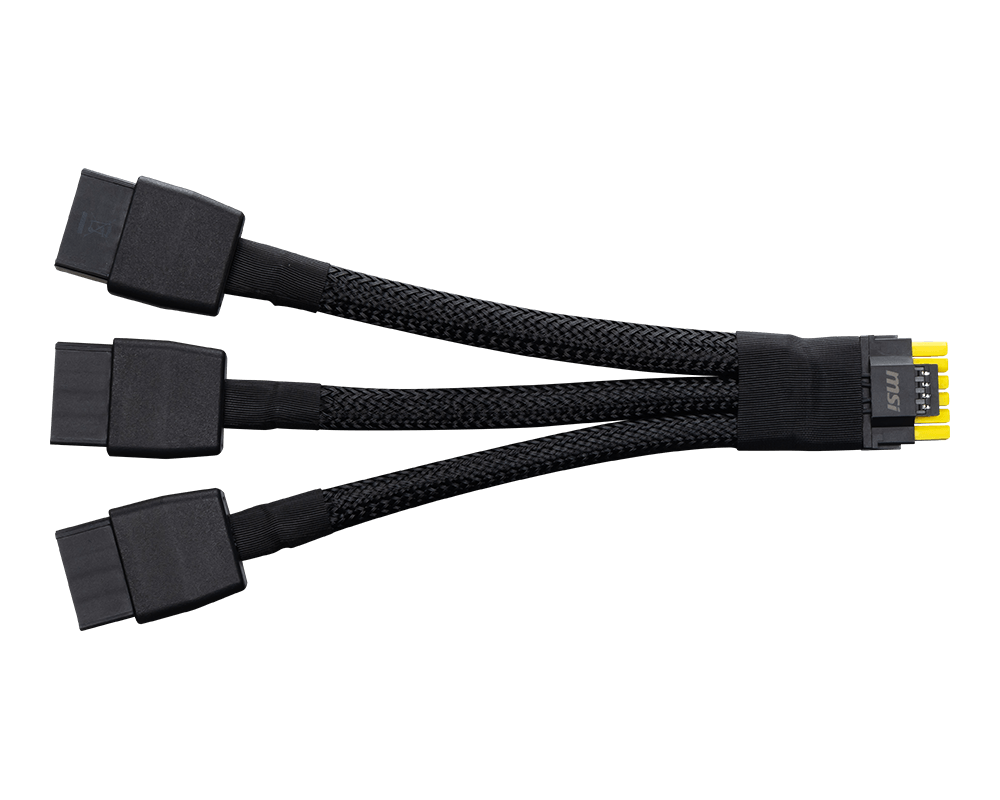

• Power Connector: 1 x 16-pin
• Recommended PSU: 850W
• Dimensions: 303 x 121 x 49 mm
• Weight (Card / Package): 1084 g / 1576 g

Connections

• DisplayPort
• HDMI™

Cooling & Build Features

Triple Fan
Three fans and a large heatsink deliver efficient, silent cooling.

TORX FAN 5.0
Interconnected fan blades and ring arcs generate focused, high-pressure airflow.

Nickel-plated Copper Baseplate
Quickly absorbs and transfers heat from the GPU and memory.

Core Pipes
Flat, square pipes optimize contact with the GPU baseplate for maximum cooling.

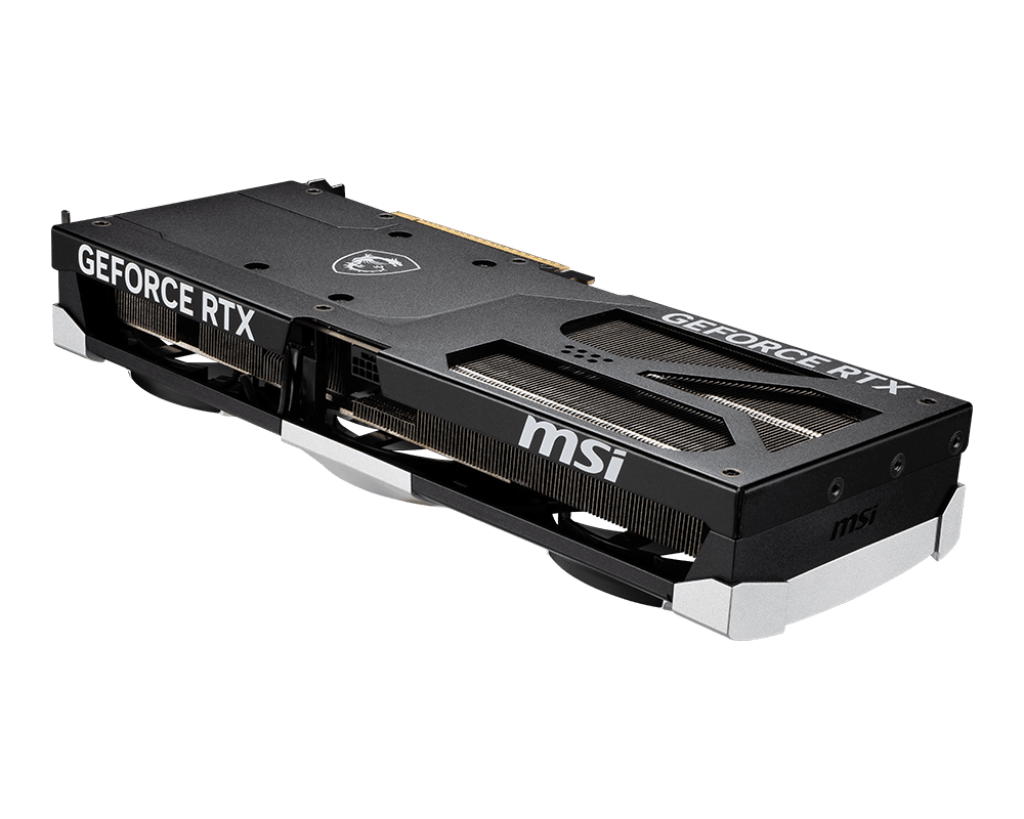

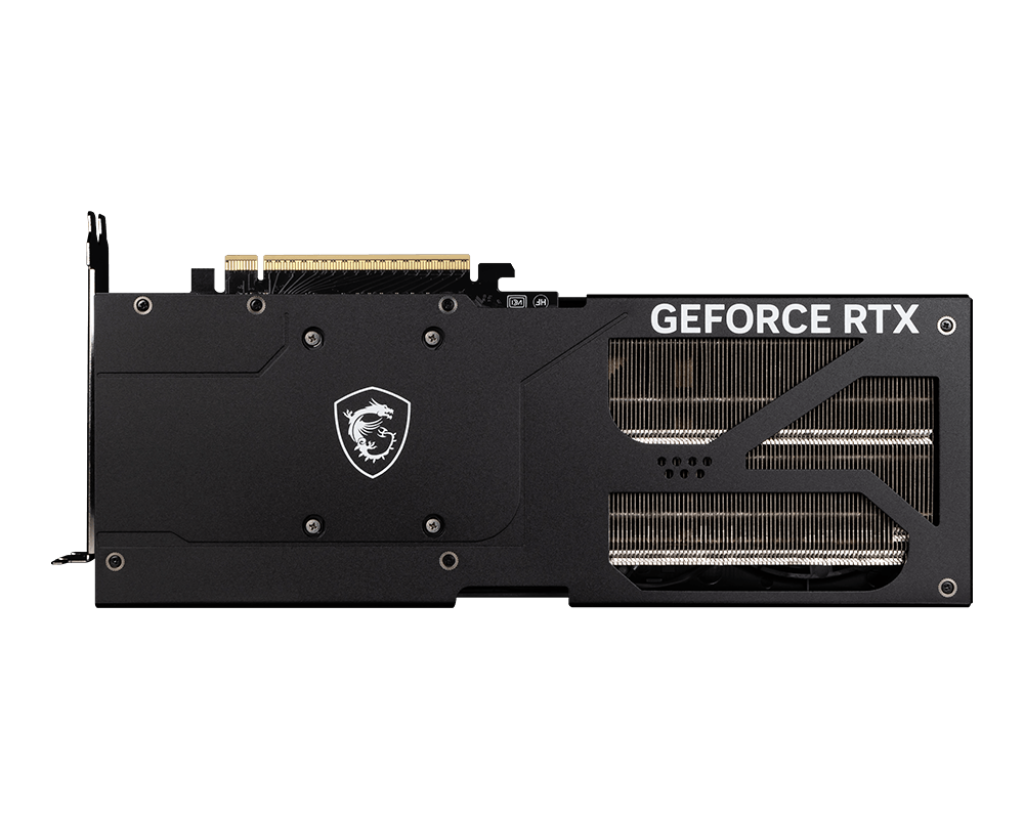

Metal Backplate
Reinforces the card while helping dissipate heat with airflow-friendly venting.

Zero Frozr
Fans pause entirely at low temperatures to eliminate noise.

DrMOS
Delivers power efficiently with minimal loss and improved voltage regulation.

Fuse
Built-in PCB fuses provide extra protection against power surges.

Software

MSI Center
Real-time system monitoring, customization, and performance tuning.

Afterburner
Industry-leading GPU overclocking software for full performance control.
